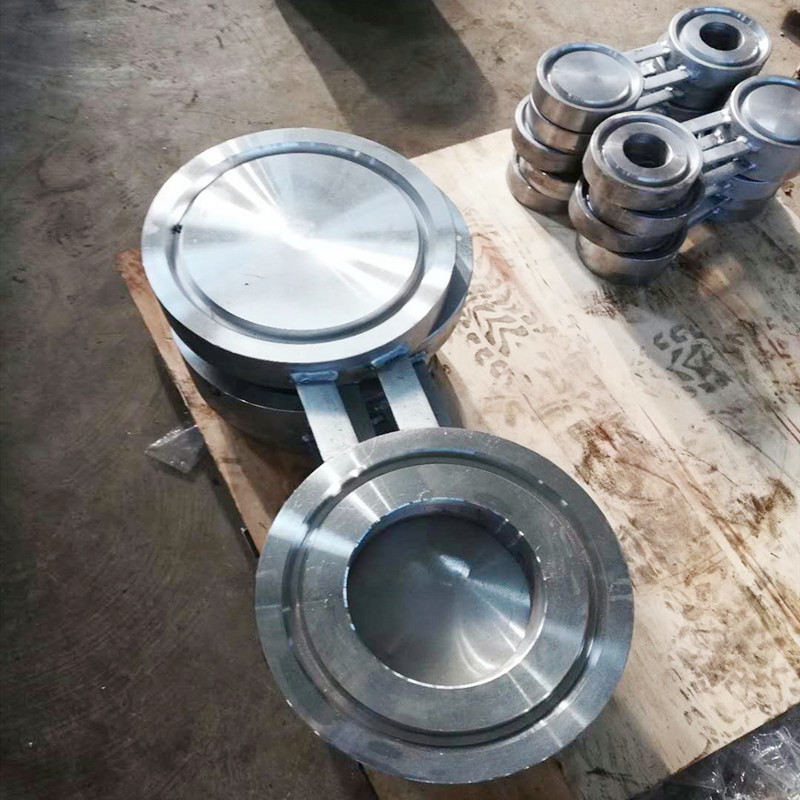

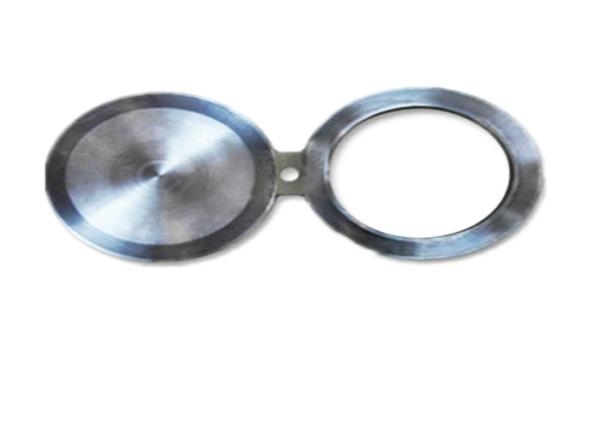

    ASME B16.48 Figure 8 Blind Flange/Spectacle Blind Flange Carbon Steel Flanged Fittings

    Ask Lasest Price
    Brand Name : PLS
    Model Number : 15mm-6000mm
    Certification : CNAS ,PED ,CE,ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 50000 Piece/Pieces month Carbon steel flange
    Delivery Time : 3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
    MOQ : 1
    • Product Details
    • Company Profile

    ASME B16.48 Figure 8 Blind Flange/Spectacle Blind Flange Carbon Steel Flanged Fittings

    Products decription:

    Ansi B16.5 Rtj 2500 A105 B16.48 Figure 8 Blind Flange Carbon Steel Flange

    Ansi B16.5 FIGURE 8 Blind flange; Rtj 2500 lb figure 8 flange ;A105 B16.48 Figure 8 Blind Flange Carbon Steel Flange

    Ansi B16.5 Rtj 2500 A105 B16.48 Figure 8 Blind Flange Carbon Steel Flange

    Standard

    Type

    Class

    Size

    ASME B16.5

    WN/LWN/SO/Blind/Lap Joint

    150#-2500#

    1/2"-24"

    (Except Blind Flange 2500lb 1/2"-12")

    SW flange

    150#-1500#

    1/2"-3"

    (Except 1500# 1/2"-2 1/2")

    Threaded

    150#-900#

    1/2"-24"

    1500# 2500#

    1/2"-2 1/2"

    ASME B16.47 Series A

    WN/blind flange

    150# -900#

    22"-48"

    (Except 900# Size:26"-48")

    ASME B16.47 Series B

    WN/blind flange

    75#-300#

    26"-48"

    400# 600# 900#

    26"-36"

    DIN2527

    Blind flange

    PN6-PN100

    DN10-DN1000

    DIN2543

    SO flange

    PN16

    DN10-DN1000

    DIN2544

    SO flange

    PN25

    DN10-DN1000

    DIN2545

    SO flange

    PN40

    DN10-DN500

    DIN2565

    Threaded flange with Neck

    PN6

    DN6-DN200

    DIN2566

    Threaded flange with Neck

    PN16

    DN6-DN150

    DIN2567

    Threaded flange with Neck

    PN25 PN40

    DN6-DN150

    DIN2568

    Threaded flange with Neck

    PN64

    DN10-DN150

    DIN2569

    Threaded flange with Neck

    PN100

    DN10-DN150

    EN1092-1:2002

    Plate flange for welding/

    loose plate flange with weld-on plate collar or for lapped pipe

    end/Blind Flange/WN flange

    PN2.5-PN100

    DN10-DN4000

    JIS B2220

    Welding flange,

    lap joint flange,

    threaded flange

    PN6-PN100

    DN10-DN1500

    BS4504 BS10 TableD/E

    Plate Flange for welding/

    WN flange/blank Flange

    PN6-PN100

    DN10-DN1500

    Other Products

    Anchor/swivel/girth/l

    ap joint/reducing/orifice

    Spectacle blind/paddle blind/

    spacer ring/orifice plate/bleed ring

    Special Products: rings/

    forgings/disc/shaft sleeves

    Sealing Surface

    RF FF RTJ TF GF LF LM

    Flange Face Finish

    Stock finish/spiral serrated/

    concentric serrated/smooth finish

    (Ra 3.2 and 6.3 micrometers)

    125-250 AARH(it is called smooth finish)

    250-500 AARH(it is called stock finish)

    Coating

    Vanish, yellow paint, anti-rust oil, galvanizing etc

    Material Grade

    Nickel Alloy Steel

    ASTM/ASME B/SB564 UNS N02200(NICKEL 200),

    UNS N04400(MONEL 400),

    UNS N08825( INCOLOY 825),UNS N06600(INCONEL 600),

    UNS N06601(INCONEL 601), UNS N06625(INCONEL 625),

    UNS N10276(HASTELLOY C276),

    ASTM/ASME B/SB160 UNS N02201(NICKEL 201),

    ASTM B/SB472 UNS N08020(Alloy 20)

    Copper Alloy

    ASTM/ASME B/SB151 UNS C70600(CuNi 90/10),

    C71500(CuNi 70/30)

    Stainless Steel

    ASTM/ASME A/SA182 F304,304L,304H,309H,310H,

    316,316H,316L,316LN,

    317,317L,321,321H,347,347H

    Duplex and Super Duplex Steel

    ASTM/ASME A/SA182

    F44,F45,F51,F53,F55,F60,F61

    Carbon steel

    ASTM /ASME A/SA105(N)

    Low Temp Carbon Steel

    ASTM/ASME A/SA350 LF2

    High Yield Carbon Steel

    ASTM/ASME A/SA694 F52,F56 F60, F65, F70

    Alloy Steel

    ASTM/ASME A/SA182 GR F5,

    F9, F11,F12,F22,F91

    Titanium

    ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7

    PACKAGE:

    plywood cases, pallets, nylon bags or according to the customers' requirements

    DELIVERY TIME:

    3-20 days after confirming order,detail delivery date should be decided according to
    production season and order quantity.
