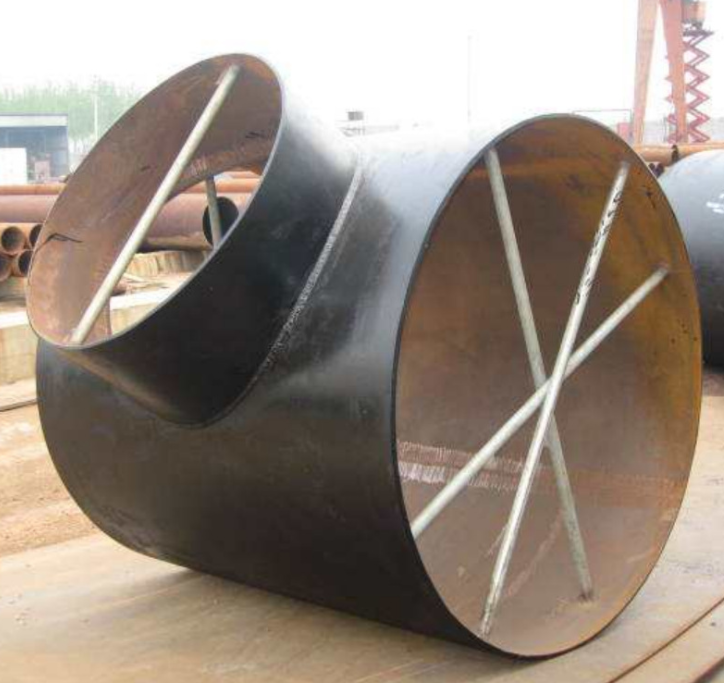

BUTT-WELDING LSAW 100% rt Report EN ASME GOST standard Equal tee
BUTT-WELDING LSAW 100% rt Report EN ASME GOST standard Equal tee
| BUTT-WELDING PIPE FITTINGS DETAILS |
| MATERIAL | Carbon Steel : |
| ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn, |
| DIN St37, St45.8, St52.4,St.35.8,St.35.8. |
| Stainless Steel: |
| 1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti |
| 00Cr17Ni14Mo2 304 304L 316 316L |
| Alloy Steel: |
| 16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1, |
| A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70 |
| STANDARD | ASTM / JIS / DIN / BS / GB/GOST |
| MODEL | 1.Tee(Straight and Reducing) 2.180 DEG Return |
| 3.Elbow (45/90/180 DEG) 4.Cap |
| 5. Reducer(Concentric and Eccentric) |
| TYPE | Seam Or Seamless |
| ELBOW DEGREE | 45 degree, 90 degree, 180 degree |
| SURFACE | Black Paint, Anti Rust Oil, Hot-Dipped Galvanize |
| WALL THICKNESS | SCH5S,SCH10S,SCH10,SCH20,SCH30,SCH40,STD,XS,SCH60, |
| SCH80,SCH100,SCH120,SCH140,SCH160,XXS,2MM |
| SIZE | 1/2"-48"(Dn15-Dn1200) |
| CONNECTION | Welding |
| SHAPE | Equal, Reducing |
| CERTIFICATE | ISO9001 |
| APPLICATION | Petroleum, chemical, power, gas, metallurgy, shipbuilding,
construction, etc |
| RELATED PRODUCTS | 1. Carbon steel nipples and sockets | 2. Flanges |
| 3. Malleable iron pipe fittings | 4. Pipes |
| 5. High-pressure fittings | 6. Valves |
| 7. P.T.F.E .thread seal tape | 8. Brass fittings |
| 9. Ductile iron pipe fittings | 10. Copper fittings |
| 11. Sanitary fittings, etc,. | 12. Grooved fittings |
| Customers’ drawings or designs are available. |
| PACKAGE | 1> 1/2" - 2" in cartons. |
| 2>Above 2" in wooden cases. |
| Big size is workable by pallets. |
| DELIVERY DETAILS | According to the quantities and specifications of each order. |
| Normal delivery time is from 30 to 45 days after receiving the
deposit. |
DIMENSIONAL TOLERANCES STRAIGHT TEES ASME B16.9
| Nominal Pipe Size | 1/2 to 2½ | 3 to 3½ | 4 | 5 to 8 | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
Outside Dia
at Bevel (D) | +1.6
-0.8 | 1.6 | 1.6 | +2.4
-1.6 | +4
-3.2 | +6.4
-4.8 | +6.4
-4.8 | +6.4
-4.8 |
| Inside Dia at End | 0.8 | 1.6 | 1.6 | 1.6 | 3.2 | 4.8 | +6.4
-4.8 | +6.4
-4.8 |
| Center to End (C / M) | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 5 |
| Wall Thk (t) | Not less than 87.5% of Nominal Wall Thickness |
Dimensional tolerances are in millimeters unless otherwise
indicated and are equal ± except as noted.
Note:
MSS SP-43 only covers stainless steel buttweld fittings made for
use with Schedule 5S and 10S pipe and Stub Ends suitable for use
with Schedule 40S pipe, as defined in ASME B36.19. The dimensions
and dimensional tolerances defined in MSS SP-43 are substantially
the same as those in ASME B16.9 specifications from NPS 1/2 - NPS
24. Except with regard to the outside diameter at the bevel.
